Description

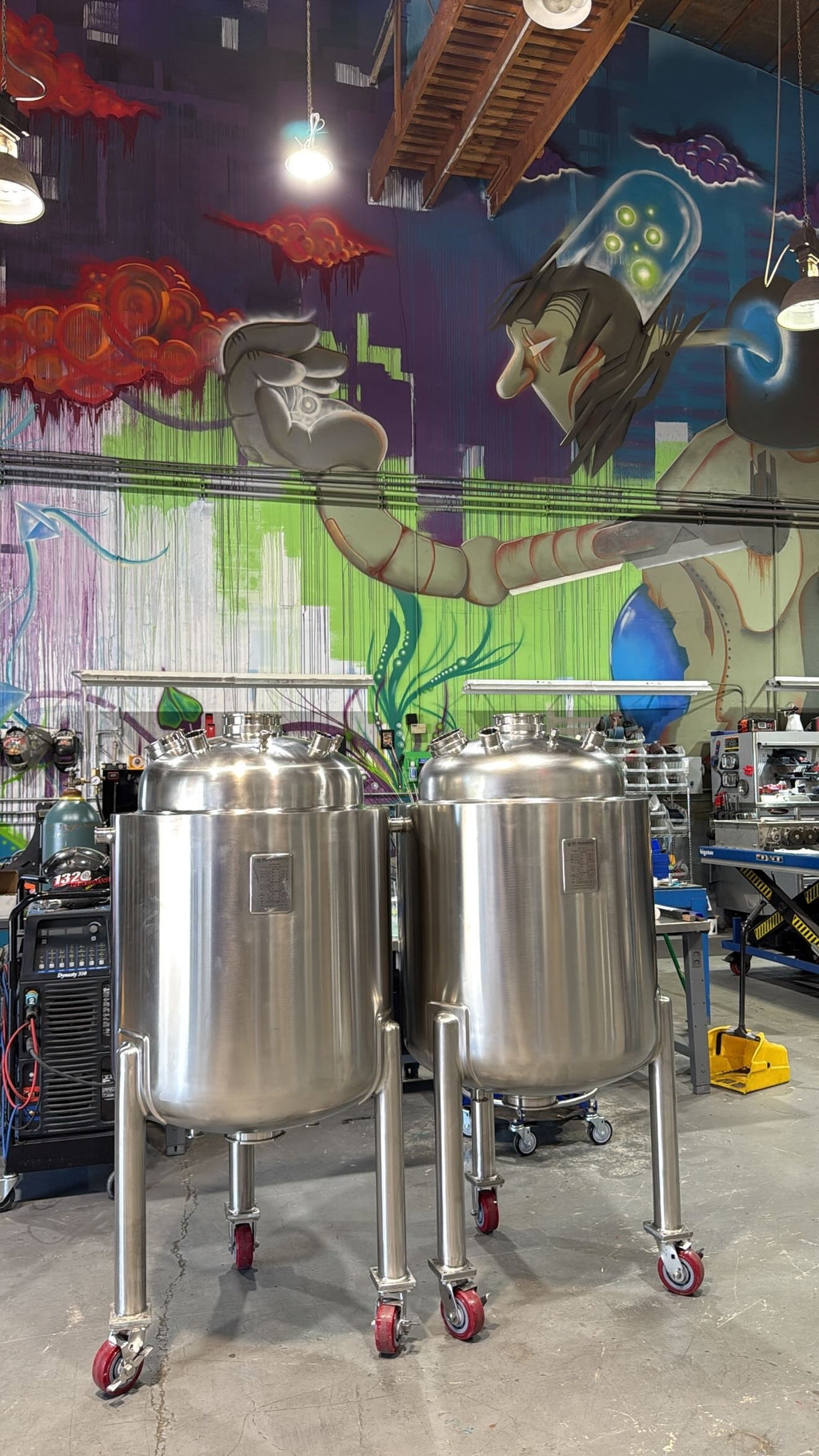

Engineered for exceptional thermal performance and built to meet rigorous ASME standards, our 250L and 400L reactors feature a double-jacketed design with an inner half-pipe jacket, delivering superior heat transfer efficiency for demanding applications such as hydrocarbon extraction, chemical processing, or pharmaceutical workflows.
These vessels are fully designed in-house to meet growing demand at a competitive price point without compromising performance, safety, or code compliance.
Key Features:
-
ASME certified to meet the highest safety standards
-
True working volumes (200L @ 80% fill for butane)
-
Oversized 6" Tri-Clamp ferrules on both top and bottom
-
Thick-walled ferrules designed to support C1D1-rated mixers
-

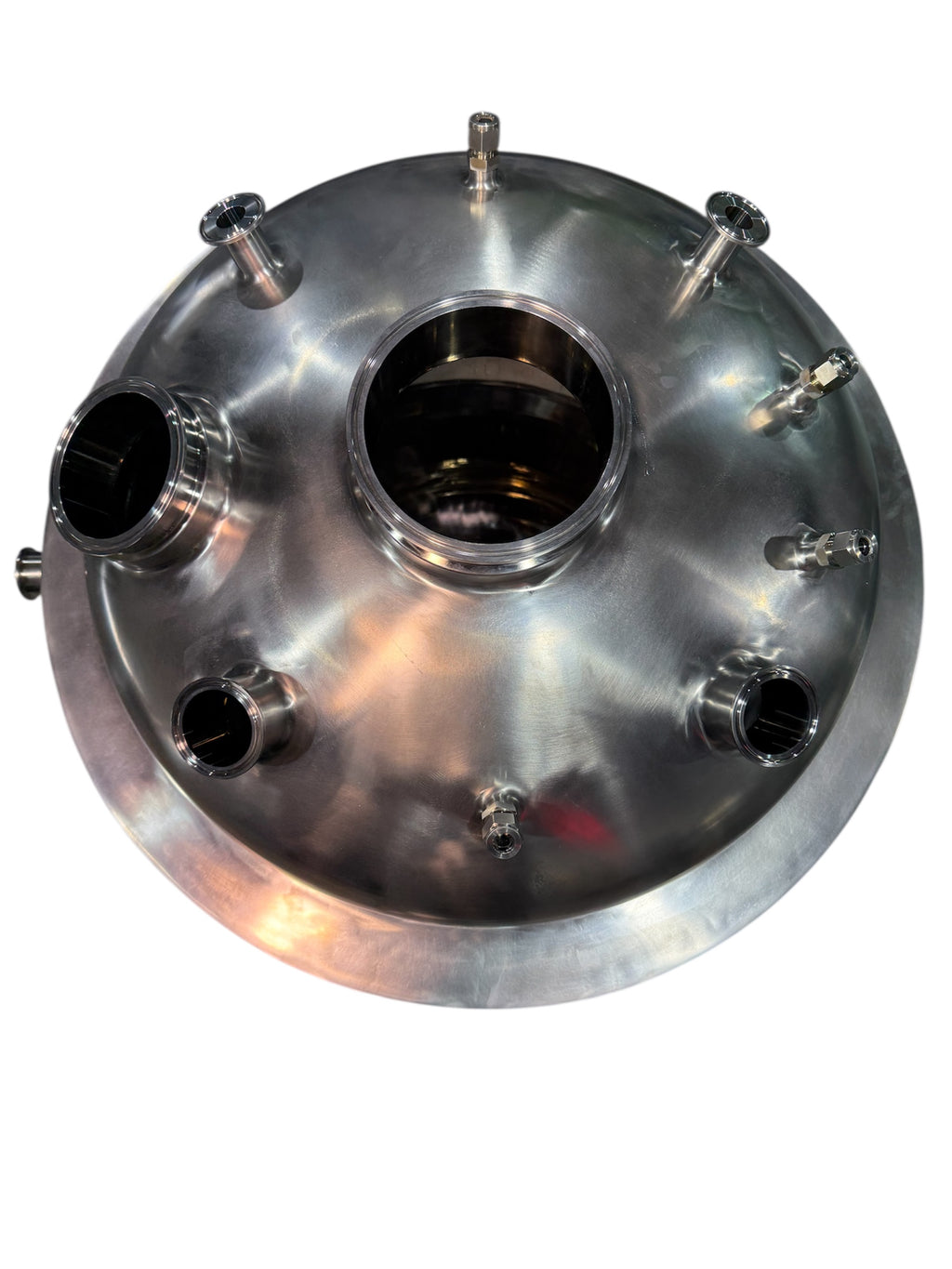

Multiple top-mounted compression ports for sensors, valves, or accessories
-
Built-in half-pipe jacket on the inner shell for accelerated heating/cooling response
-
Designed for flexibility and adaptability in closed-loop or batch systems
Solvent Fill Specifications
| Solvent | 250L Reactor Max Fill | 400L Reactor Max Fill | Notes |
|---|---|---|---|
| n-Butane | 200 L / 116 kg | 350 L / 203 kg | 80% fill, vapor pressure ~46 psi @ 20°C |
| Propane | 200 L / 102 kg | 350 L / 178.5 kg | 80% fill, vapor pressure ~125 psi @ 20°C |
| 70/30 Blend | 200 L / ~106 kg | 350 L / ~185.5 kg | 80% fill, average for LPG blend |
| Ethanol | 250 L / 197.25 kg | 400 L / 315.6 kg | 100% fill, non-pressurized liquid |
| Water | 250 L / 250 kg | 400 L / 400 kg | For reference only |
